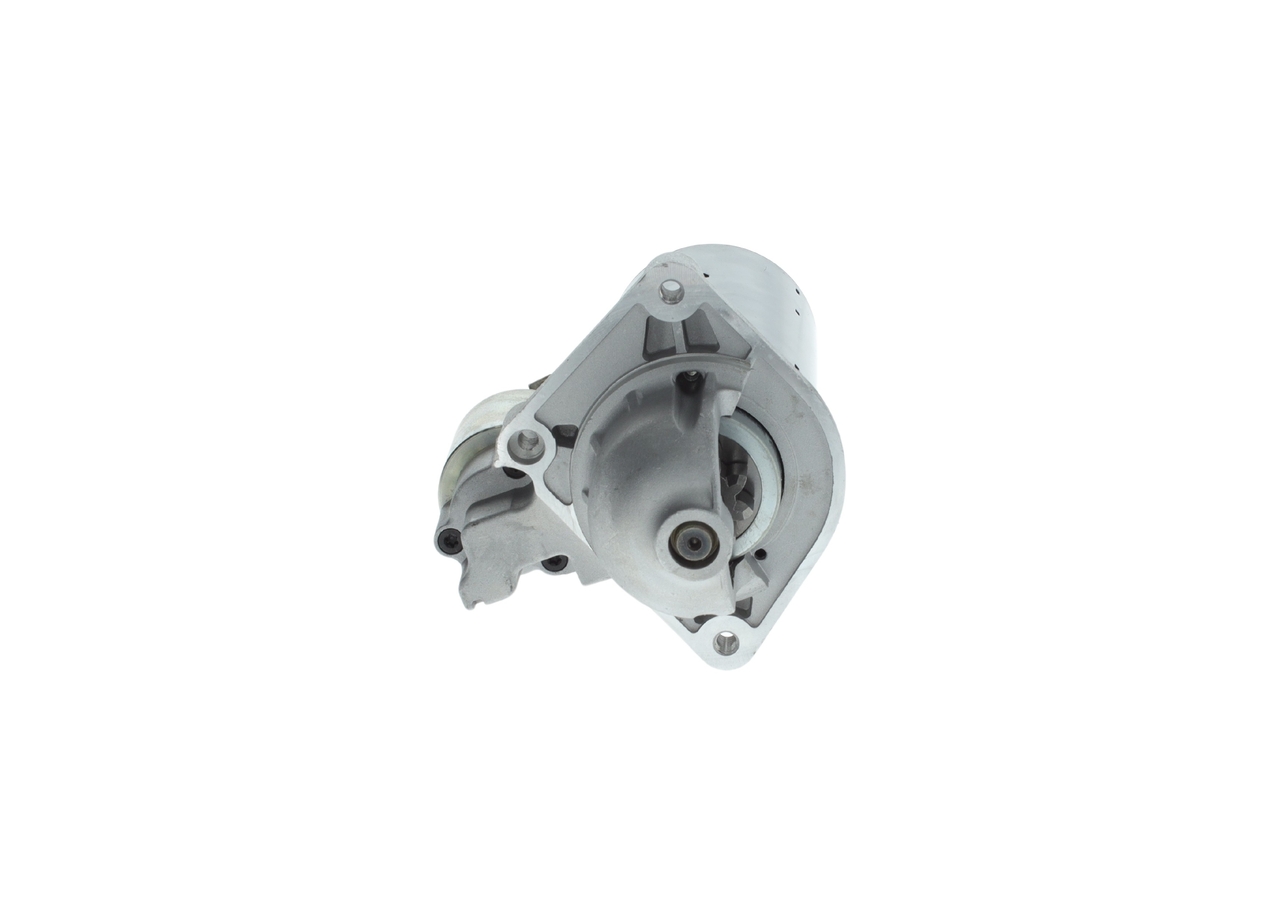

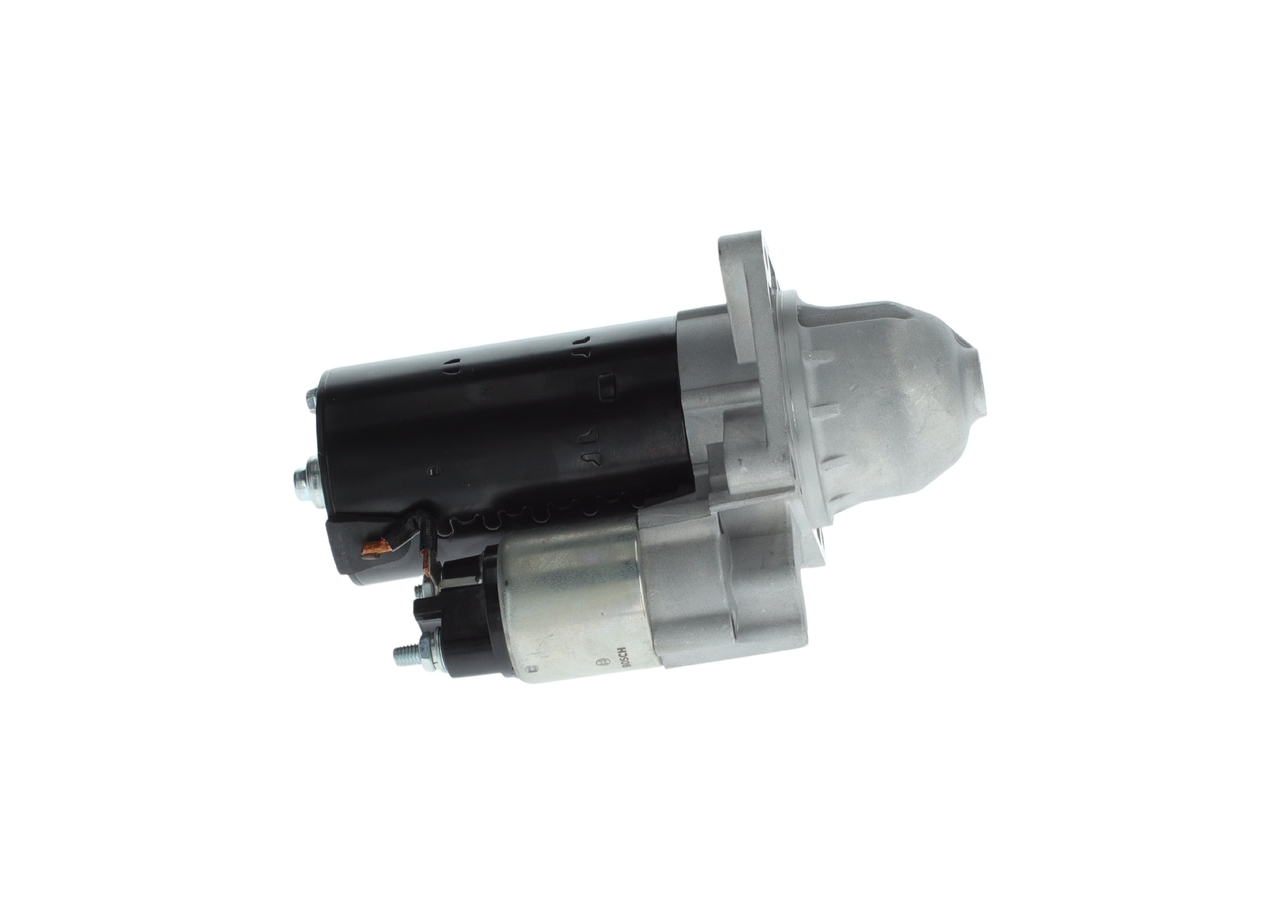

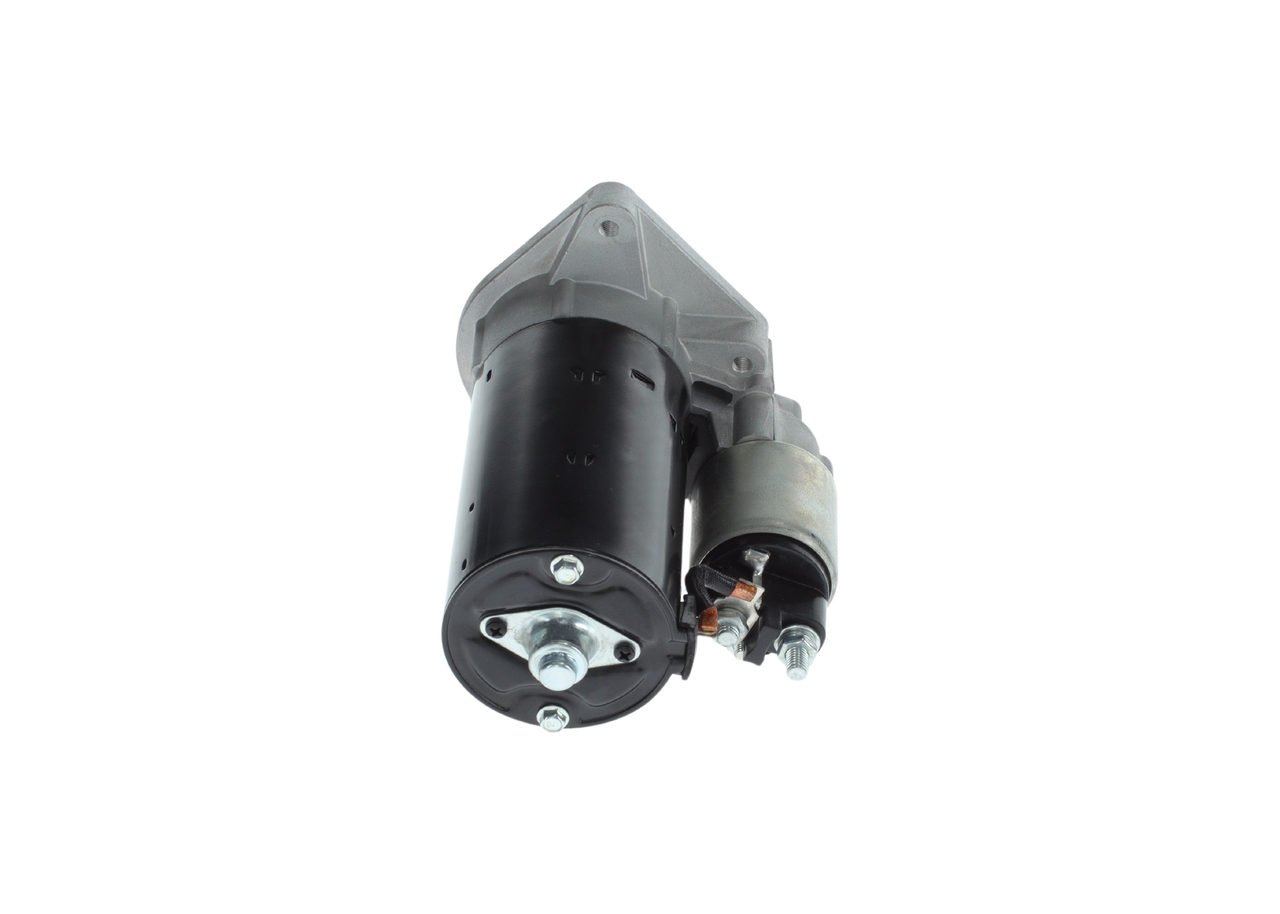

Startmotor
Product informatie:
Artikelnummer
1 986 S10 034
12V
Starter vermogen
2.5kW
3 beschikbare montagegaten
3 draadboringen
9 tands
Klem 30.50
Flensdiameter
84mm
Draairichting met de klok mee
Rondsel-startpositie
27mm
Starteruitvoering
Zonder toplager
Schroefdraad
M8x1.25
Schroefdraad 1
M8x1.25
Schroefdraad 2
M8x1.25
Lengte
246mm
Hoekmaat bek opening
105u00b0
Onderdeelnummers:
- 1516689R
- 2994100
- 2995990
- 42498717
- 500059592
- 500307724
- 50408688
- 504086888
- 504201467
- 5801287850
- 69502571
- 69503857
- 77 00 377 051
- 97336488EB
- MK666919
Fabrikant:
BOSCHGeschikt voor:
-
Iveco
New Daily VI
- 35/40/50/60/65/70C21, 35S21 04-2019 -
- 35/40/50/60/65/70C16; 35/42S16 04-2019 -
- 55C18, 55S18, 70C18, 70S18 01-2018 -
- 50C21, 60C21 04-2019 -
- 33S12, 35C12, 35S12 04-2016 - 02-2014
- 33S14, 35C14, 35S14 04-2016 - 02-2014
- 33S16, 35C16, 35S16 04-2016 - 02-2014
- 3.0 Natural Power 35C/S14, 40/50/65/70C14 03-2014 - 02-2014
- 33S16, 35C16, 35S16, 40C16, 50C16 04-2016 - 02-2014
- 35C21,35S21,40C21,50C21,60C21,65C21,70C21 07-2021 - 02-2014
- 35C18,35S18,40C18,50C18,60C18,65C18,70C18 07-2021 - 02-2014
- 40C14, 50C14, 60C14 Natural Power 03-2014 - 02-2014
- 40C15, 50C15, 60C15 03-2014 - 02-2014
- 40C17, 50C17, 60C17 03-2014 - 02-2014
- 40C18, 50C18, 60C18 04-2016 - 02-2014
- 50C21, 60C21 07-2021 - 02-2014
- 50C18, 60C18 07-2021 - 02-2014
- 55C18, 55S18, 70C18, 70S18 06-2022 - 02-2014
- 35C16, 35S16, 40C16 50C16, 70C16 07-2021 - 02-2014
- 35C17, 35S17, 40C17, 50C17, 65C17, 70C17 03-2014 - 02-2011
- 33S13, 35C13, 35S13 03-2014 - 02-2011
- 35C21, 35S21, 40C21, 50C21, 65C21, 70C21 03-2014 - 05-2006
- 35C15, 35S15, 40C15, 50C15, 65C15, 70C15 03-2014 - 05-2006
- 33S15, 35C15, 35S15 03-2014 - 05-2006
- 33S13, 35C13, 35S13 03-2014 - 05-2006
- 33S11, 35C11, 35S11 03-2014 - 07-2021
- 3.0 Natural Power 35C/S14, 40/50/65/70C14 03-2014 - 07-2021
- 33S11,35C11, 35S11 03-2014 - 07-2021
- 33S15, 35C15, 35S15 03-2014 - 07-2021
- 35C15, 35S15, 40C15, 50C15, 65C15, 70C15 03-2014 - 07-2021
- 35C17, 35S17, 40C17, 50C17, 65C17, 70C17 03-2014 - 07-2021
- 35C21, 35S21, 40C21, 50C21, 65C21, 70C21 03-2014 - 07-2021
- 35S17HW.35S17HWD,55S17HW,55S17HWD 4x4 03-2014 - 07-2021
- 35C15, 40C15, 50C15, 65C15, 70C15, 35S15 04-2016 - 07-2021
- 35C/S15, 40C15, 50C15, 65C15, 70C15, 72C15 04-2016 - 07-2021
- 35S18, 55C18, 55S18, 70C18, 70S18 4x4 04-2016 - 02-2014
- 40C15, 50C15, 60C15 04-2016 - 02-2014
- 35C18, 40C18, 50C18, 65C18, 70C18, 35S18 04-2016 - 04-2006
- 35C18,35S18,40C18,50C18,60C18,65C18,70C18 04-2016 - 04-2006
- 35/40/50/60/65/70C21, 35S21 04-2019 - 08-2011
New Daily V
- 50C14 Natural Power 09-2011 - 02-2014
- 50C15 09-2011 - 02-2014
- 35S17, 40C17, 45C17, 50C17 09-2011 - 02-2014
- 35C21V, 35S21V, 40C21V, 45C21V, 50C21V 09-2011 - 06-2014
- 35C21, 35S21, 40/45/50/60/70C21 09-2011 - 06-2014
- 29L13V, 35C13V, 35S13V, 40C13V, 40S13V 09-2011 - 06-2014
- 29L13, 29L13D, 35C13D, 40C13D 09-2011 - 06-2014
- 35C15V, 40C15V 09-2011 - 06-2014
- 26L11, 26L11D, 35C11D, 35S11, 40C11 09-2011 - 06-2014
- 35C15/C15D/S15, 40/45/50/60/70C15 09-2011 - 06-2014
- 35C17/C17D/S17, 40/45/50/60/70C17 09-2011 - 06-2014
- 29L11V, 35C11V, 35S11V, 40C11V 09-2011 - 06-2014
- 29L15V, 35C15LV, 40C15L, 50C15LV 09-2011 - 06-2014
- 29L15V, 35C15LV, 40C15LV, 50C15LV 09-2011 - 06-2014
- 35C17V,35S17V,40C17V,45C17V, 50C17V, 60C17V 09-2011 - 02-2014
- 35/40/50/65/70C14, 35S14 Natural Power 09-2011 - 02-2014
New Daily III
- 29L9 05-1999 - 04-2006
- 70C13 05-1999 - 04-2006
- 50C11 05-1999 - 07-2007
- 40C13 05-1999 - 04-2006
- 29L10V 09-2002 - 07-2007
- 35S10 09-2002 - 07-2007
- 29L12V 09-2002 - 07-2007
- 29L10 09-2002 - 04-2006
- 29L12 09-2002 - 04-2006
- 50C15 01-2001 - 04-2006
- 65C15 11-2001 - 04-2006
- 29L9V 11-2001 - 04-2006
- 35S9V 11-2001 - 04-2006
- 35C/S9 11-2001 - 04-2006
- 29L13 11-2001 - 04-2006
- 35C15 11-2001 - 04-2006
- 40C14 09-2004 - 04-2006
- 29L11 05-1999 - 04-2006
- 35C/S9V 05-1999 - 11-2001
- 35S11V,C11V 05-1999 - 07-2007
- 35C13V,S13V 05-1999 - 03-2006
- 35S15V,C15V 2.8 TDI Unijet 11-2002 - 07-2007
- 35C12,S12 09-2002 - 04-2006
- 35C12V,S12V 09-2002 - 07-2007
- 35C/S10 09-2002 - 04-2006
- 40C17,S17 01-2005 - 04-2006
- 29L9 11-2001 - 04-2006
- 29L14 11-2005 - 04-2006
- 35C14 09-2004 - 04-2006
- 35C14, S14 01-2005 - 04-2006
- 35C17,S17 01-2005 - 04-2006
- 35C13, S13 05-1999 - 04-2006
- 40C13 05-1999 - 09-2004
- 40C15 11-2001 - 04-2006
- 50C14 09-2004 - 04-2006
- 50C17 09-2004 - 04-2006
- 65C14 09-2004 - 04-2006
- 65C17 09-2004 - 04-2006
- 29L9V 05-1999 - 11-2001
- 29L11V 05-1999 - 11-2001
- 29L13 05-2001 - 07-2007
- 29L14 01-2005 - 04-2006
- 35C/S14 01-2005 - 07-2007
- 40C17,S17 07-1999 - 12-2006
- 50C13 05-1999 - 07-2007
- 35C11, 35S11, 50C11, 65C11 05-1999 - 08-2006
- 35C/S11 05-1999 - 04-2006
- 50C11 11-2001 - 09-2004
New Daily IV
- 35S14, 35S14/P 05-2006 - 08-2011
- 35C12,S12 05-2006 - 08-2011
- 35C15 05-2006 - 08-2011
- 29L12V, 29L12V/P 05-2006 - 08-2011
- 29L10 05-2006 - 08-2011
- 29L10V 05-2006 - 08-2011
- 29L12 05-2006 - 08-2011
- 29L14C, 29L14C/P, 29L14V, 29L14V/P 05-2006 - 08-2011
- 35C10,S10 05-2006 - 08-2011
- 35C15V, 35C15V/P 05-2006 - 08-2011
- 35C18,S18 05-2006 - 08-2011
- 35C18V, 35C18V/P, 35S18V, 35S18V/P 05-2006 - 08-2011
- 35C10V,S10V 05-2006 - 08-2011
- 35C12V, 35C12V/P, 35S12V, 35S12V/P 05-2006 - 08-2011
- 35C14V, C14V/P, S14C, S14C/P, S14V, S14V/P 05-2006 - 08-2011
- 50C18 05-2006 - 08-2011
- 50C15 05-2006 - 08-2011
- 40C15V, 40C15V/P 05-2006 - 08-2011
- 40C12V, 40C12V/P 05-2006 - 08-2011
- 40C18 05-2006 - 08-2011
- 40C15 05-2006 - 08-2011
- 40C12 05-2006 - 08-2011
- 40C10 05-2006 - 08-2011
- 65C18 05-2006 - 08-2011
- 35C11V, 35S11V 07-2007 - 08-2011
- 35C13V, C13V/P, S13V, S13V/P 07-2007 - 08-2011
- 35C14V, 35C14V/P, 35S14V, 35S14V/P 09-2009 - 08-2011
- 35C14GV, 35C14GV/P, 35S14GV, 35S14GV/P 07-2007 - 08-2011
- 35C17V, 35C17V/P, 35S17V, 35S17V/P 07-2007 - 08-2011
- 40C11V 07-2007 - 08-2011
- 40C13V, C13V/P 07-2007 - 08-2011
- 40C14GV, 40C14GV/P, 40S14GV, 40S14GV/P 07-2007 - 08-2011
- 40C14V, 40C14V/P, 40S14V, 40S14V/P 09-2009 - 08-2011
- 40C17V, 40C17V/P 07-2007 - 08-2011
- 45C15V 05-2006 - 08-2011
- 45C17V, 45C17V/P 07-2007 - 08-2011
- 45C18 05-2006 - 08-2011
- 50C14GV, 50C14GV/P 07-2007 - 08-2011
- 50C14V, 50C14V/P 09-2009 - 08-2011
- 50C17V, 50C17V/P 07-2007 - 08-2011
- 60C15V 05-2006 - 08-2011
- 60C17V, 60C17V/P 07-2007 - 08-2011
- 60C18 05-2006 - 08-2011
- 65C14V, 65C14V/P 09-2009 - 08-2011
- 65C15 05-2006 - 08-2011
- 65C17V, 65C17V/P 07-2007 - 08-2011
- 70C14V, 70C14V/P 09-2009 - 08-2011
- 70C17V, 70C17V/P 07-2007 - 08-2011
- 35C11V, 35S11, 35S11D 07-2007 - 08-2011
- 70C17, 70C17P 09-2009 - 08-2011
- 70C14, 70C14/P 09-2009 - 08-2011
- 65C17, 65C17/P 07-2007 - 08-2011
- 65C15, 65C15/P, 65C15D, 65C15D/P 05-2006 - 08-2011
- 65C14G, 65C14GV/P, 65C14GD, 65C14GD/P 07-2007 - 08-2011
- 65C14, 65C14/P 09-2009 - 08-2011
- 60C17, 60C17/P 07-2007 - 08-2011
- 60C15, 60C15/P, 60C15D, 60C15D/P 05-2006 - 08-2011
- 60C14, 60C14/P 09-2009 - 08-2011
- 50C17, 50C17/P 07-2007 - 08-2011
- 50C14G, 50C14GV/P, 50C14GD, 50C14GD/P 07-2007 - 08-2011
- 50C14, 50C14/P 09-2009 - 08-2011
- 45C18, 45C18/P, 45C18D, 45C18D/P 05-2006 - 08-2011
- 45C17, 45C17/P 07-2007 - 08-2011
- 45C15 05-2006 - 08-2011
- 45C14, 45C14/P 09-2009 - 08-2011
- 40C17, 40C17/P 07-2007 - 08-2011
- 40C14G, C14GV/P 07-2007 - 08-2011
- 40C14, 40C14/P 09-2009 - 08-2011
- 40C13, 40C13/P, 40S13, 40S13/P, 40S13D 07-2007 - 08-2011
- 40C11, 40C11D, 40S11, 40S11D 07-2007 - 08-2011
- 35S17W, 35S17WD 07-2007 - 08-2011
- 35C17, 35C17/P, 35S17, 35S17/P, 35S17D 07-2007 - 08-2011
- 35C14G, C14GD, C14GV/P, S14G, S14G/P, S14GD 07-2007 - 08-2011
- 35C14, C14/P, S14, S14/P, S14D, S14D/P 09-2009 - 08-2011
- 35C13, 35C13/P, 35S13, 35S13/P, 35S13D 07-2007 - 08-2011
- 35S15 06-2006 - 08-2011
- 70C15 07-2008 - 08-2011
- 55S18W 4x4 06-2006 - 08-2011
- 35S18W 4x4 06-2006 - 08-2011
- 40C18V, 40C18V/P 05-2006 - 08-2011
- 29L14 05-2006 - 08-2011
- 35C14, 35S14, 35S14/P 05-2006 - 08-2011
Massif Station Wagon
- 3.0 TDI 16_V HPT 10-2008 - 02-2011
- 3.0 TDI 16_V HPI 10-2008 - 02-2011
Massif
- 3.0 TDI 16_V HPI 10-2008 - 02-2011
- 3.0 TDI 16_V HPT 10-2008 - 12-2011
Massif Single Cab
- 3.0 TDI 16_V HPI 10-2008 - 02-2011
- 3.0 TDI 16_V HPT 10-2008 - 02-2011
New Daily III Scudato
- 40C11,50C11 05-1999 - 05-2006
