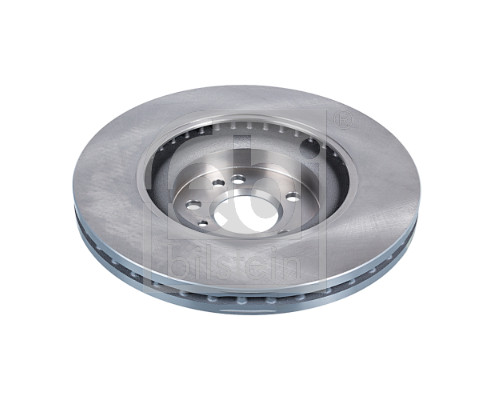

Brake disc
Product information:
Article number
24745
Brake disc thickness
32mm
5 hole(s)
3 mounting holes available
Thickness
54.7mm
Outer diameter
350mm
Bolt circle diameter
112mm
Surface
Coated
Ventilated brake disc
front axle
Minimum thickness
29.4mm
Center bore diameter
67mm
Part numbers:
- 164 421 05 12
- 164 421 14 12
- 166 421 07 12
- 166 421 14 00
- A164 421 05 12
- A164 421 14 12
- A166 421 07 12
- A166 421 14 00
Manufacturer:
FEBISuitable for:
-
Mercedes-Benz
ML II (164/4JG)
- 3.5 350 4-Matic V6 24_V 02-2005 - 12-2011
- 5.0 500 4-Matic V8 24_V 07-2005 - 12-2011
- 3.0 ML-280 CDI 4-Matic V6 24_V 07-2005 - 07-2009
- 3.0 ML-320 CDI 4-Matic V6 24_V 07-2005 - 07-2009
- 4.0 ML-420 CDI 4-Matic V8 32_V 02-2006 - 09-2009
- 5.5 500 4-Matic V8 24_V 12-2007 - 12-2011
- 3.0 ML-320 CDI 4-Matic V6 24_V 07-2005 - 07-2011
- 3.0 ML-350 CDI BlueTec 4-Matic V6 24_V 09-2009 - 12-2011
- 3.0 ML-350 CDI BlueEFFICIENCY 4-Matic V6 02-2010 - 12-2011
- 3.0 ML-300 CDI 4-Matic V6 24_V 07-2009 - 12-2011
- 3.0 ML-350 CDI 4-Matic V6 24_V 07-2009 - 12-2011
- 4.0 ML-450 CDI 4-Matic V8 32_V 09-2009 - 12-2011
- 3.0 ML-300 CDI 4-Matic V6 24_V 02-2010 - 12-2011
- 3.5 350 V6 24_V 01-2009 - 12-2011
GL (X164)
- 4.7 GL 450 V8 32_V 09-2006 - 08-2012
- 5.5 GL 500 V8 32_V 09-2006 - 12-2012
- 3.0 GL 320 CDI V6 24_V 09-2006 - 05-2009
- 3.0 GL 350 CDI V6 24_V 05-2009 - 08-2012
- 3.0 GL 350 CDI V6 24_V BlueTec 12-2009 - 08-2012
- 3.0 GL 350 CDI V6 24_V 10-2010 - 08-2012
R (W251)
- 3.0 320 CDI 24_V 4-Matic 01-2006 - 07-2010
- 5.0 500 V8 32_V 4-Matic 08-2005 - 12-2014
- 3.0 280 CDI 24_V 4-Matic 05-2006 - 12-2012
- 5.5 550 V8 32_V 4-Matic 05-2007 - 12-2014
- 3.0 280 CDI 24_V 05-2006 - 12-2012
- 3.0 300 CDI 24_V BlueEFFICIENCY 4-Matic 07-2009 - 12-2012
- 3.0 350 CDI 24_V 4-Matic 07-2009 - 12-2012
- 3.5 350 CDI V6 24_V BlueTec 4-Matic 01-2006 - 12-2014
- 3.0 350 CDI V6 24_V 4-Matic 08-2010 - 12-2014
- 3.5 350 24_V 4-Matic 10-2011 - 12-2014
- 3.0 320 CDI 24_V 4-Matic 01-2006 - 12-2012
- 3.0 300 CDI 24_V BlueEFFICIENCY 07-2009 - 12-2012
ML III (166)
- 3.5 ML-350 BlueEFFICIENCY 24_V 4-Matic 06-2011 - 12-2015
- 3.0 ML-350 BlueTEC V6 24_V 4-Matic 06-2011 - 02-2015
- 3.0 ML-400 V6 24_V Turbo 4-Matic 08-2013 - 02-2015
- 3.5 ML-350 BlueEFFICIENCY 24_V 09-2011 - 02-2015
GL (X166)
- 3.0 GL 350 CDI V6 24_V BlueTEC 4-Matic 07-2012 - 10-2015
- 4.7 GL 450 V8 32_V 4-Matic 07-2012 - 10-2015
- 3.0 GL-400 V6 24_V Turbo 4-Matic 08-2013 - 10-2015
GLE Coupe (C292)
- 400 3.0 V6 24_V biturbo 4-Matic 03-2015 - 10-2019
- 3.0 450 AMG V6 24_V Turbo 4-Matic 03-2015 - 10-2019
- 320 3.0 V6 24_V biturbo 4-Matic 09-2015 - 10-2019
- 3.0 43 AMG V6 24_V Turbo 4-Matic 05-2016 - 10-2019
- 3.0 43 AMG V6 24_V Turbo 4-Matic 06-2017 - 10-2019
GLE (W166)
- 400 3.0 V6 24_V 4-Matic 04-2015 - 10-2018
- 350d 3.0 V6 24_V BlueTEC 4-Matic 04-2015 - 10-2018
- 320 3.0 V6 24_V 4-Matic 10-2015 - 10-2018
- 350 3.5 V6 24_V BlueEFFICIENCY 11-2015 - 10-2018
- 350 3.5 V6 24_V BlueEFFICIENCY 4-Matic 11-2015 - 10-2018
- 350d 3.0 V6 24_V BlueTEC 4-Matic 04-2015 - 12-2018
GLS (X166)
- 3.0 GLS-400 V6 24_V 4-Matic 11-2015 - 04-2019
- 3.0 GLS 350d V6 24_V BlueTEC 4-Matic 11-2015 - 04-2019
- 3.0 GLS-450 V6 24_V 4-Matic 06-2016 - 04-2019
- 3.0 GLS 350d V6 24_V BlueTEC 4-Matic 01-2017 - 04-2019
