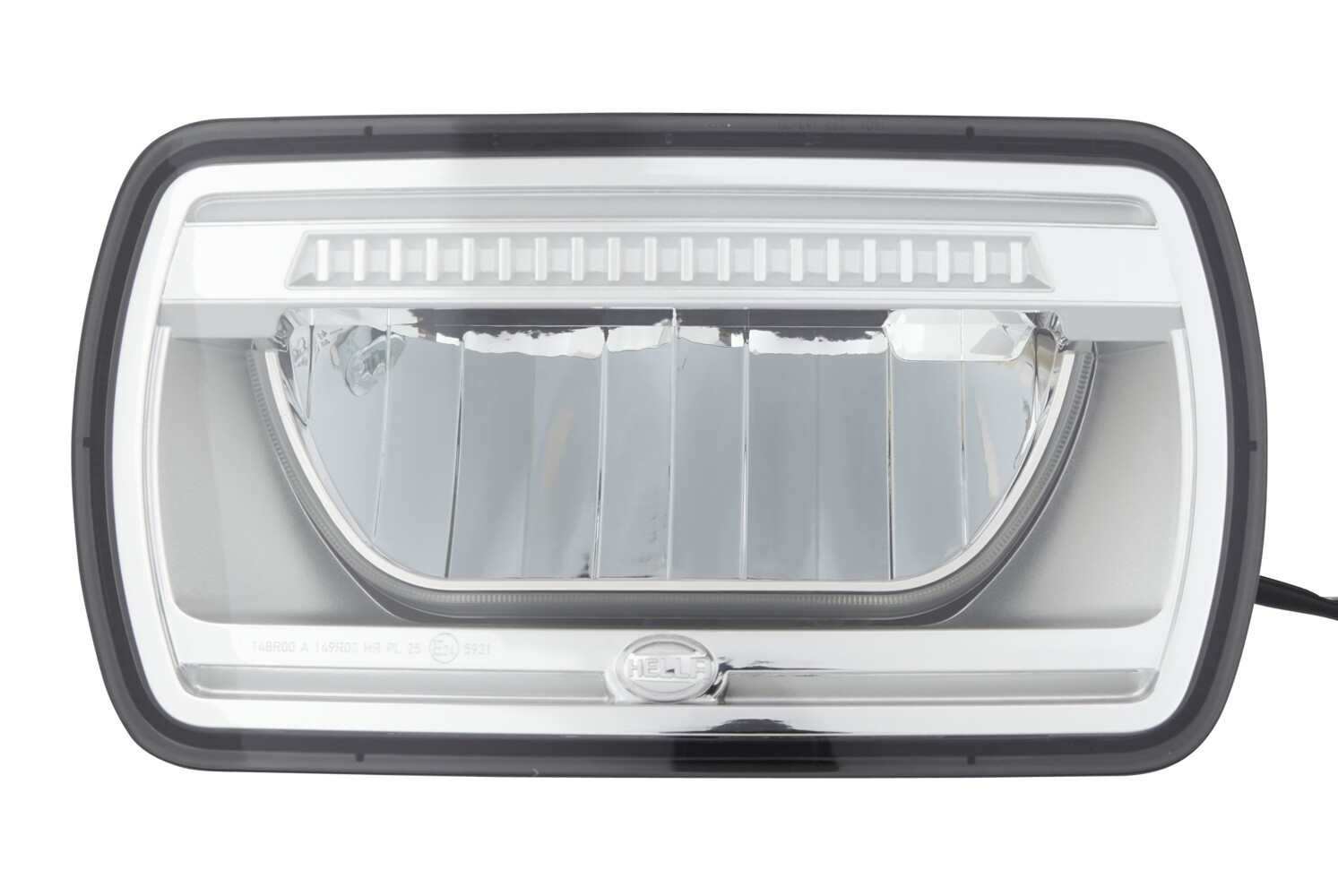

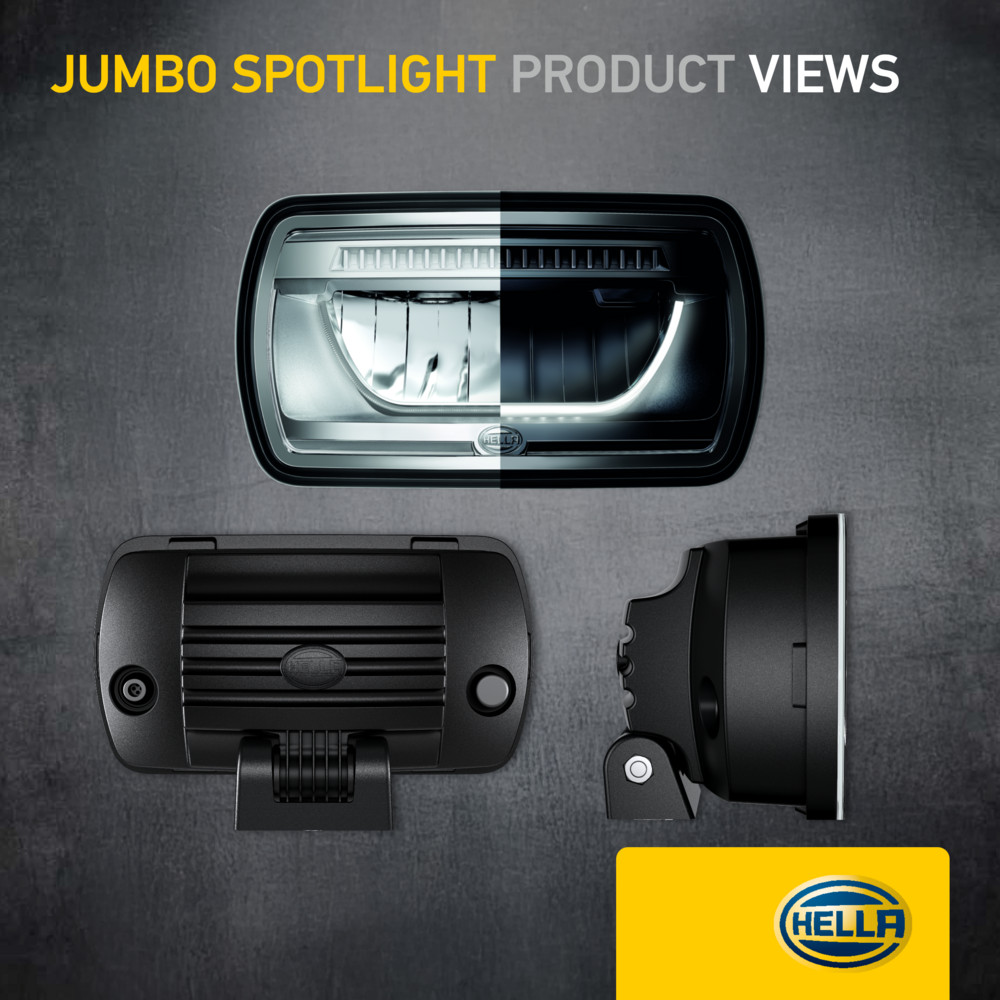

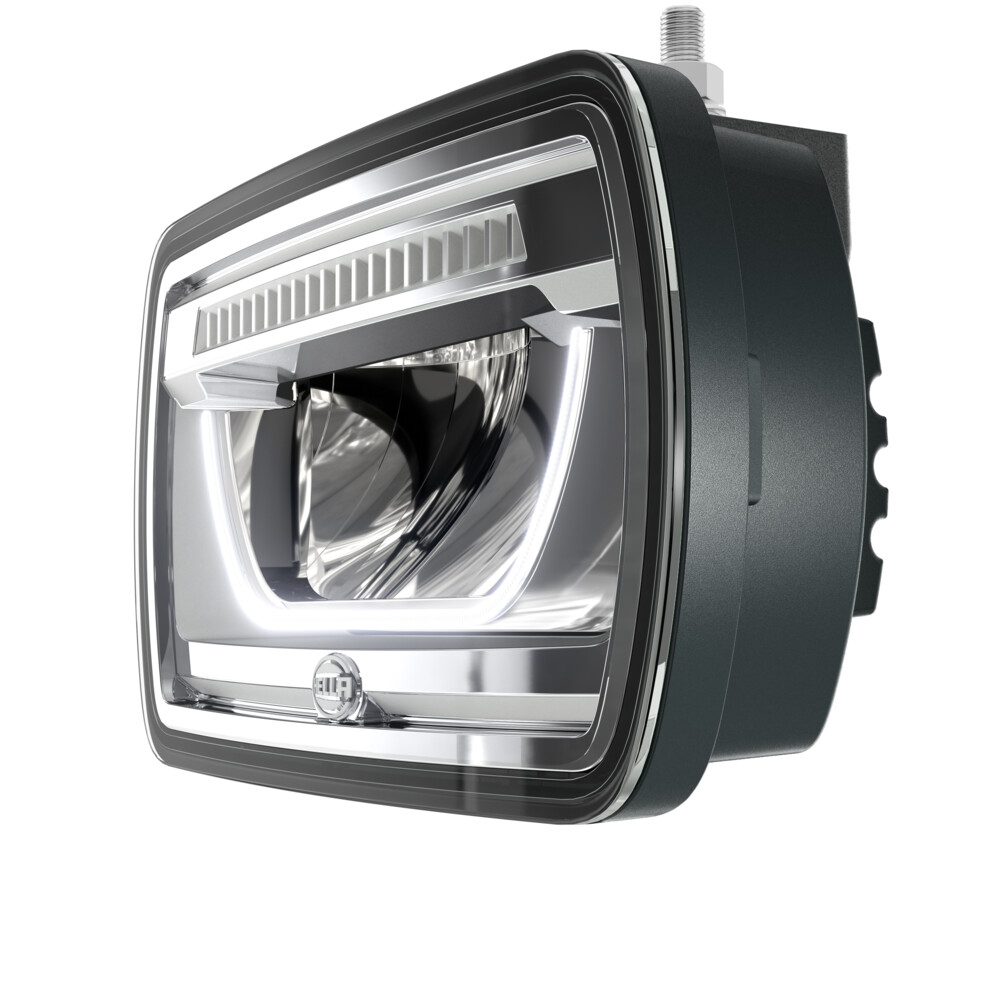

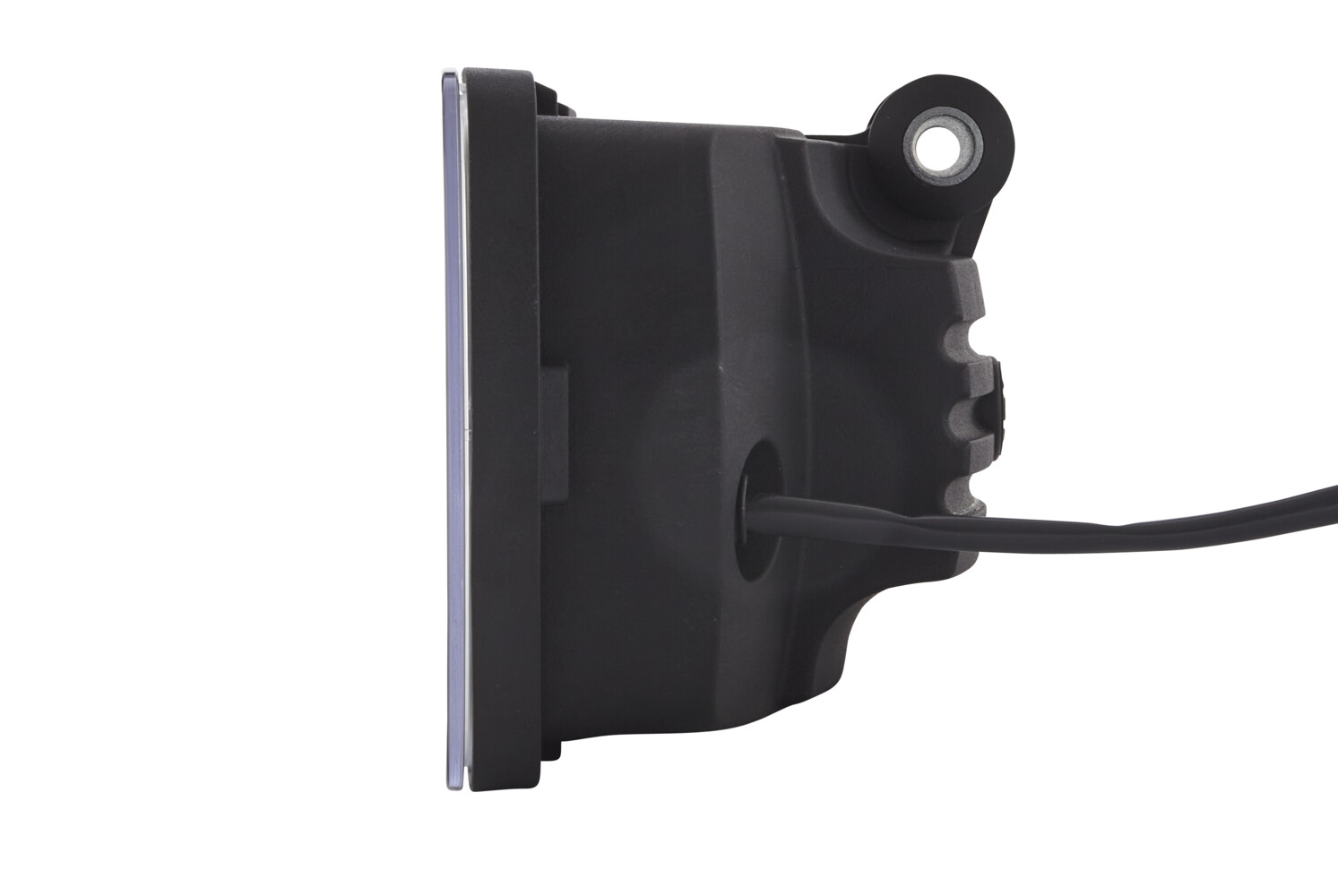

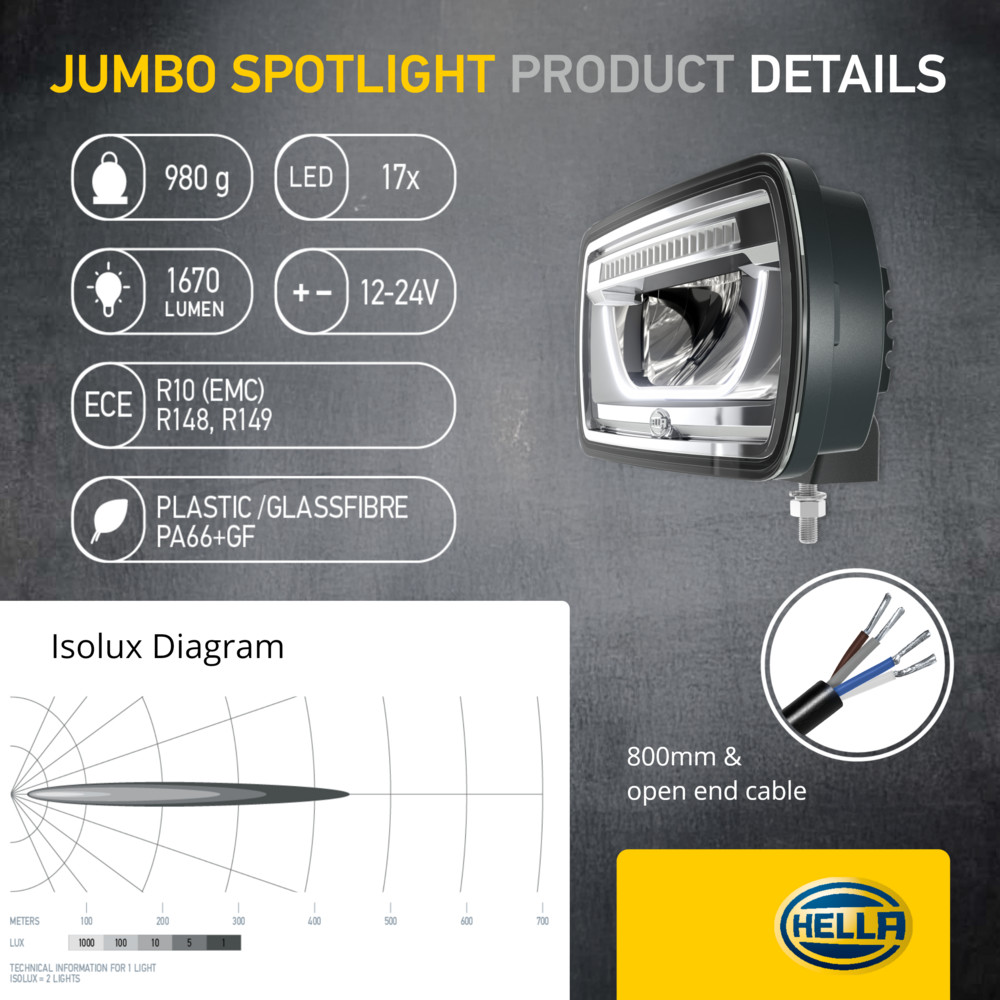

Spotlight
Product information:
Article number
1FE 016 773-011

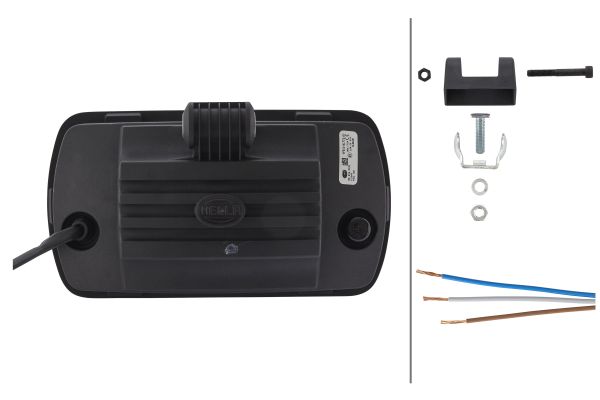

Mounting
Screwed
Suspended mounting
LED version
12V
24V
Spanning
9V ->
Spanning
-> 32V

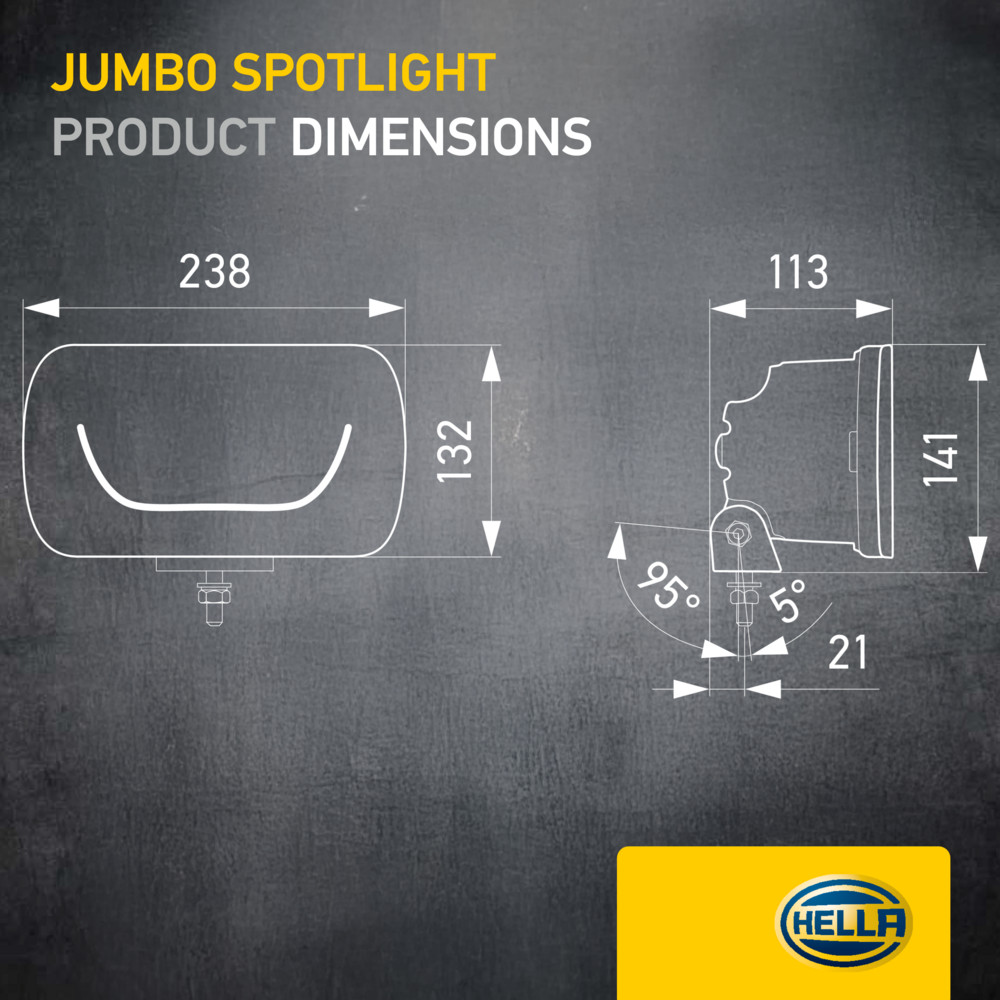

Height
132mm
Overall height
141mm
Width
238mm
Depth
113mm
Installation depth
23mm
With high beam (LED)
With position light (LED)
2 light functions
Meets ECE standard R10
Meets ECE standard R148
Meets ECE standard R149
Reference number
25
Cable length
800mm
Thermoplastic housing
Black housing

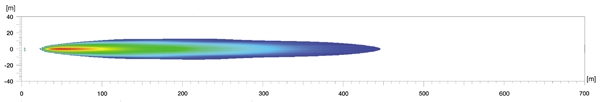

Wide light distribution
Light color
White
Transparent lens
Plug type
Open cable ends
Beveiligingstype
IP6K7IP code
Beveiligingstype
IPX9KIP code
Rectangular model
Plastic housing
Clear (natural) lamp glass
Plastic lens
Light output
541 lm
Color temperature
6000K
Registration type
E-type verified

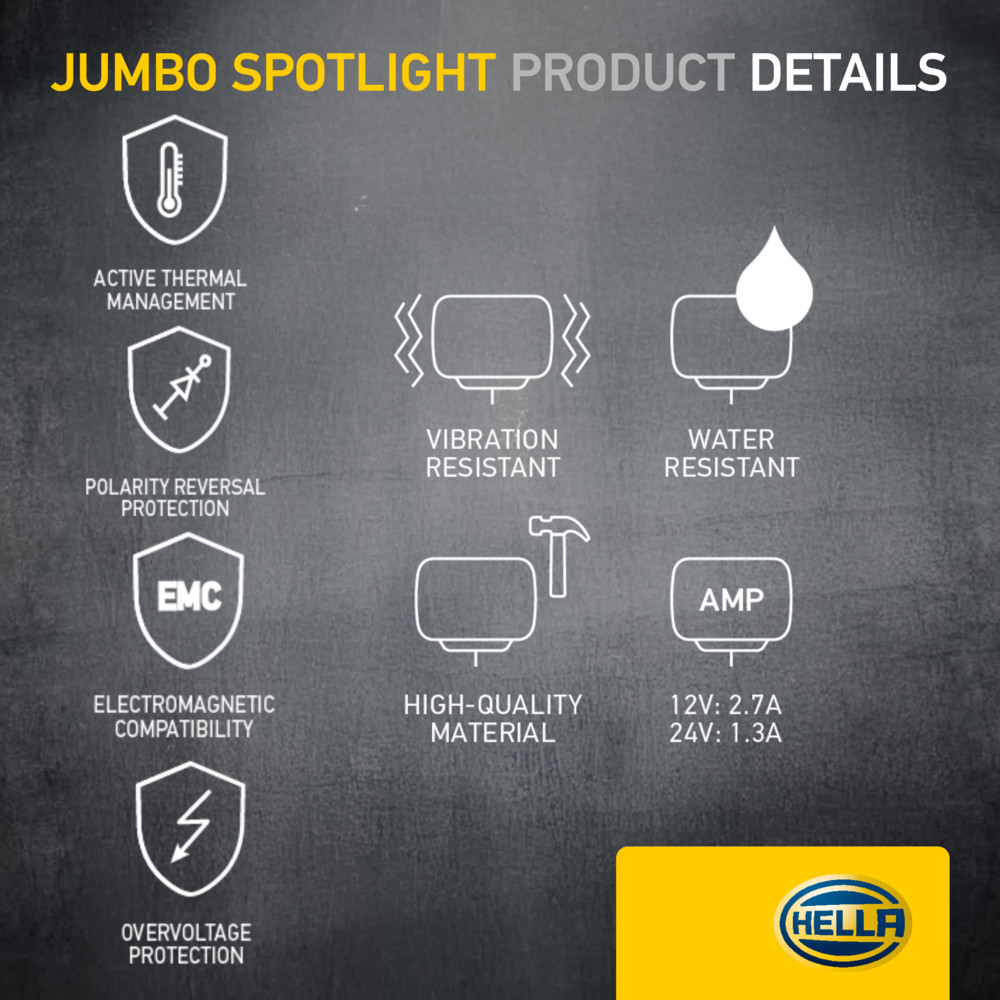

Power consumption
1.3W
Power consumption
2.7W
1 piece
Part numbers:
- 1546064
