Spotlight
Product information:
Article number
1FE 016 773-001
Mounting
Screwed
Vertical mounting
LED version
Light color
White
12V
24V
Spanning
9V ->
Voltage
-> 32V

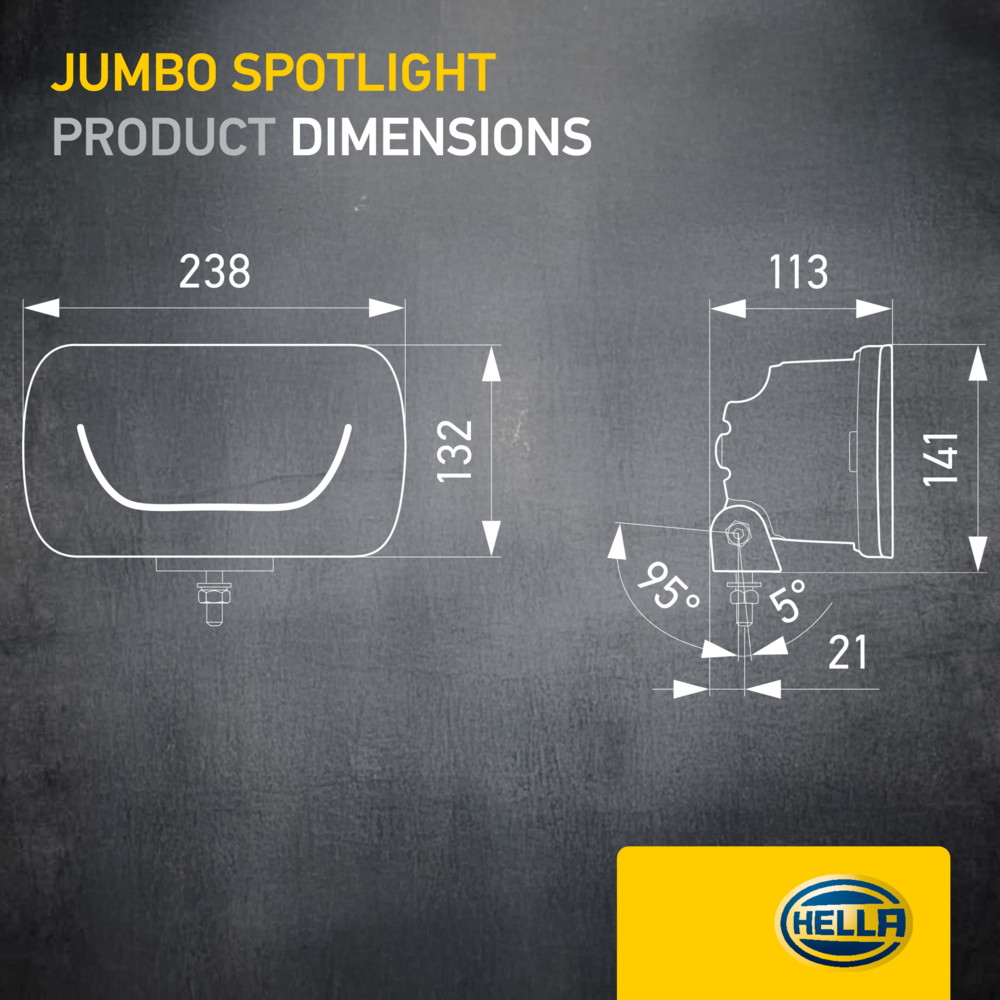

Height
132mm
Total height
141mm
Width
238mm
Depth
113mm
Installation depth
23mm
With high beam (LED)
With position light (LED)
2 light functions
Registration type
E-type tested
Conforms to ECE R10 standard
Conforms to ECE R148 standard
Conforms to ECE R149 standard
Reference number 25
Cable length
800mm
Black housing
Transparent lens
Rectangular model

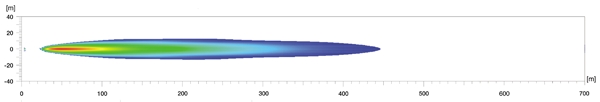

Wide light distribution
Clear (natural) lamp glass
Plastic lens
Protection type
IP6K7 IP code
Protection type
IPX9K IP code
Plug type
Open cable ends
Color temperature
6000K
Light output
541 lm
Power consumption
1.3W
Power consumption
2.7W
Thermoplastic housing
1 piece
Part numbers:
- 1546063
- 25609330008.5
- 500051173
