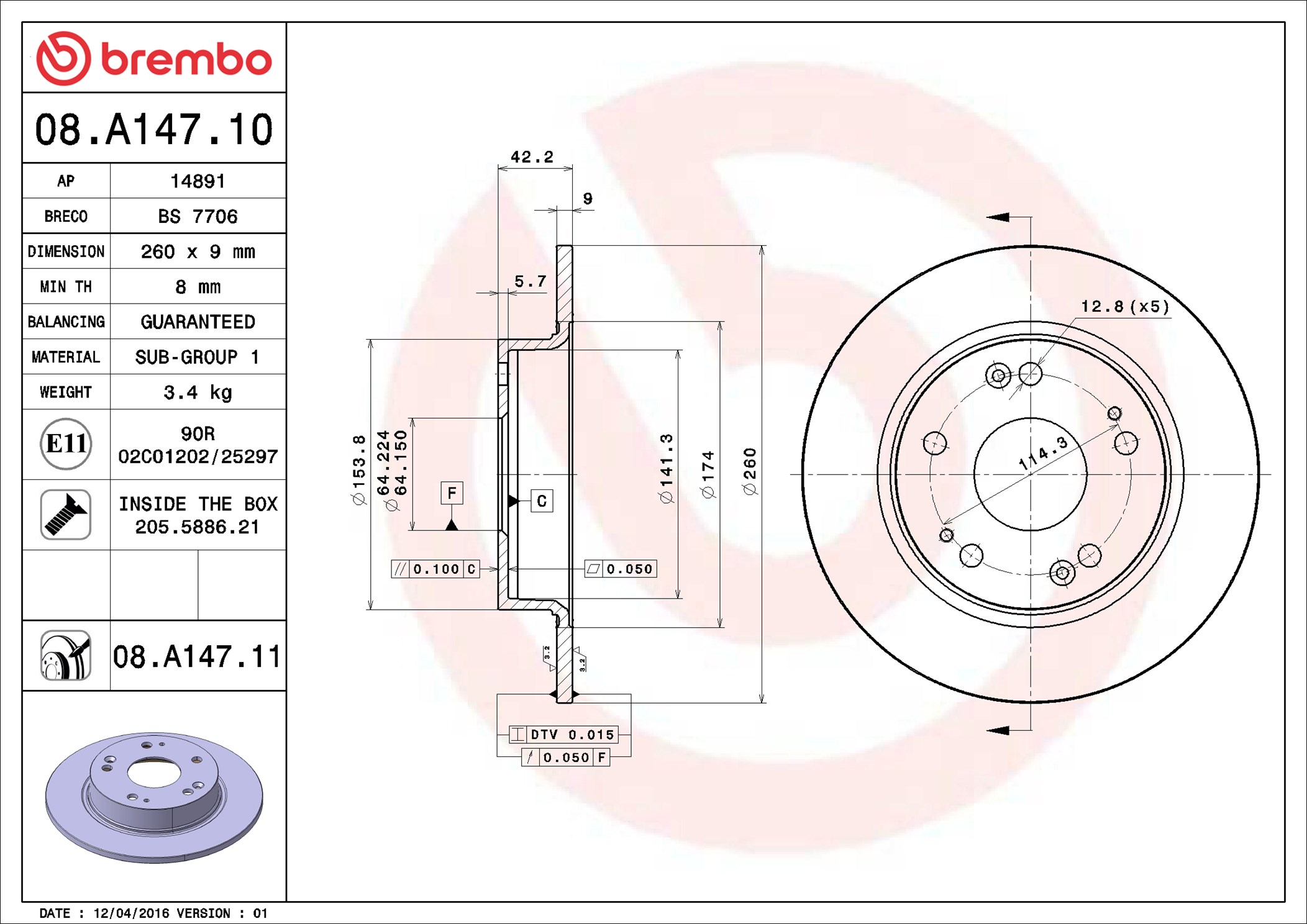

Brake disc
Product information:
Article number
08.A147.11
Solid brake disc
Brake disc thickness
9mm
5 holes
With screws
Height
42mm
Center bore diameter
64mm
Outer diameter
260mm
Surface
Coated
Minimum thickness
8mm
Torque
108Nm
2 pieces per pack.
Part numbers:
- 42510SMGE20
- 42510SNAA00
- 42510SNAA01
- 42510SNEA00
- 42510SNLT00
- 42510TR3A00
Manufacturer:
Suitable for:
-
Honda
Civic (FA/FD)
- 1.8i VTEC 16_V 09-2005 - 02-2012
- 1.3 Hybrid 01-2006 - 12-2010
- 1.6i 16_V 09-2005 - 12-2011
- 1.3 Hybrid 01-2010 - 02-2012
Civic (FK/FN)
- 1.4 i-Dsi 09-2005 - 10-2008
- 2.0i Type R VTEC 16_V 09-2006 - 01-2012
- 1.8i VTEC 16_V 09-2005 - 01-2012
- 2.2 i-CTDi 16_V 09-2005 - 01-2012
- 1.4i Type S 16_V 10-2008 - 01-2012
Civic (FB)
- 1.8i VTEC 16_V 02-2012 - 12-2016
