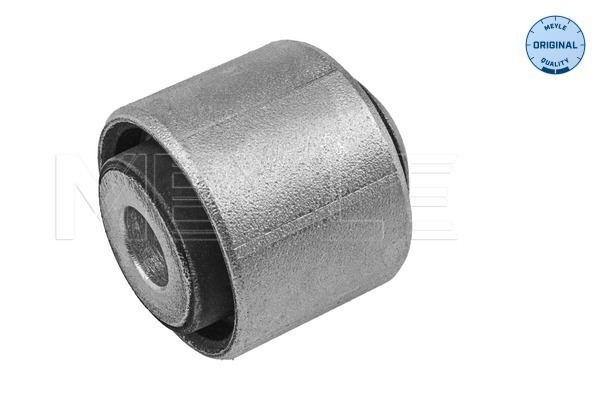

Control arm / reaction arm bearing
Product information:
Article number
014 710 0036
upper
rear axle - left
rear axle - right
outer
Height
41mm
Inner diameter
12mm
Outer diameter
39.5mm
Without holder
2 piece(s) needed
Quantity per axle
8
Part numbers:
- 166 352 09 00
- 167 352 19 00
- A 166 352 09 00
- A 167 352 19 00
Manufacturer:
Suitable for:
-
Mercedes-Benz
GLE Coupe (C167)
- 350 e 2.0 16_V 4-Matic 06-2020 -
- 450 EQ Boost 3.0 24_V 4-Matic 02-2020 -
- 350 2.0 16_V 4-Matic 09-2020 -
- 450 EQ Boost 2.5 24_V 4-Matic 09-2020 -
- 300d EQ Boost 2.0 Turbo 16_V 4-Matic 06-2021 -
- 350d 2.9 4-Matic 10-2021 -
- 300d 2.0 Turbo 16_V 4-Matic 03-2023 -
- 450d 3.0 4-Matic 03-2023 -
- 350de 2.0 Turbo 16_V 4-Matic 03-2023 -
- 400 e 2.0 16_V 4-Matic 03-2023 -
- 450 3.0 24_V 4-Matic 03-2023 -
- 350d 2.9 4-Matic 11-2019 - 05-2021
- 400d 2.9 4-Matic 11-2019 - 05-2021
- 53 AMG EQ Boost 3.0 24_V 4-Matic+ 11-2019 - 05-2021
- 350de 2.0 Turbo 16_V 4-Matic 03-2020 - 12-2011
- 63 EQ Boost 4.0 V8 32_V 4-Matic+ 03-2020 - 12-2011
- 63 S EQ Boost 4.0 V8 32_V 4-Matic+ 03-2020 - 12-2011
GLE (V167)
- 350 e 2.0 16_V 4-Matic 06-2020 -
- 300d EQ Boost 2.0 Turbo 16_V 4-Matic 06-2021 -
- 350de 2.0 Turbo 16_V 4-Matic 03-2023 -
- 350de 2.0 Turbo 16_V 4-Matic 03-2020 -
- 300d 2.0 Turbo 16_V 4-Matic 03-2023 -
- 450d 3.0 4-Matic 03-2023 -
- 400 e 2.0 16_V 4-Matic 03-2023 -
- 450 3.0 24_V 4-Matic 03-2023 -
- 350 EQ Boost 2.0 16_V 4-Matic 07-2023 -
- 580 EQ Boost 4.0 V8 32_V 4-Matic+ 08-2023 -
- 450d 3.0 4-Matic 11-2023 -
- 350 EQ Boost 2.0 16_V 04-2025 -
- 300d 2.0 Turbo 16_V 4-Matic 10-2018 - 05-2021
- 450 EQ Boost 3.0 24_V 4-Matic 10-2018 - 05-2021
- 400d 2.9 4-Matic 12-2018 - 05-2021
- 350d 2.9 4-Matic 12-2018 - 05-2021
- 53 AMG 3.0 EQ Boost 24_V 4-Matic+ 10-2018 - 04-2019
- 580 4.0 V8 32_V 4-Matic 11-2019 - 04-2019
- 350 2.0 16_V 4-Matic 04-2019 - 04-2019
- 350 2.0 16_V 04-2019 - 05-2021
- 63 S EQ Boost 4.0 V8 32_V 4-Matic+ 11-2019 - 10-2019
- 63 EQ Boost 4.0 V8 32_V 4-Matic+ 11-2019 - 10-2019
- 350de 2.0 Turbo 16_V 4-Matic 11-2019 - 12-2011
GLS (X167)
- 450 3.0 4-Matic EQ Boost 06-2019 -
- Maybach 480 3.0 4-Matic EQ Boost 11-2020 -
- 350d 3.0 Mild Hybrid 4-Matic 05-2023 -
- 450d 3.0 Mild Hybrid 4-Matic 04-2023 -
- 400d 2.9 4-Matic 04-2019 - 04-2019
- 350d 2.9 4-Matic 04-2019 - 04-2019
- 580 4.0 4-Matic 11-2019 - 04-2019
- 4.0 63 AMG 4-Matic+ EQ Boost 11-2019 - 10-2019
- Maybach 600 4.0 4-Matic EQ Boost 11-2019 - 10-2019
ML II (164/4JG)
- 3.5 350 4-Matic V6 24_V 02-2005 - 12-2011
- 5.0 500 4-Matic V8 24_V 07-2005 - 12-2011
- 6.2 63 AMG 4-Matic V8 32_V 01-2006 - 12-2011
- 3.0 ML-280 CDI 4-Matic V6 24_V 07-2005 - 07-2009
- 3.0 ML-320 CDI 4-Matic V6 24_V 07-2005 - 07-2009
- 4.0 ML-420 CDI 4-Matic V8 32_V 02-2006 - 09-2009
- 5.5 500 4-Matic V8 24_V 12-2007 - 12-2011
- 3.0 ML-320 CDI 4-Matic V6 24_V 07-2005 - 07-2011
- 3.0 ML-350 CDI BlueTec 4-Matic V6 24_V 09-2009 - 12-2011
- 3.0 ML-350 CDI BlueEFFICIENCY 4-Matic V6 02-2010 - 12-2011
- 3.0 ML-300 CDI 4-Matic V6 24_V 07-2009 - 12-2011
- 3.0 ML-350 CDI 4-Matic V6 24_V 07-2009 - 12-2011
- 4.0 ML-450 CDI 4-Matic V8 32_V 09-2009 - 12-2011
- 3.0 ML-300 CDI 4-Matic V6 24_V 02-2010 - 12-2011
- 3.5 350 V6 24_V 01-2009 - 12-2011
GL (X164)
- 4.7 GL 450 V8 32_V 09-2006 - 08-2012
- 5.5 GL 500 V8 32_V 09-2006 - 12-2012
- 4.0 GL 420 CDI V8 32_V 09-2006 - 05-2009
- 3.0 GL 320 CDI V6 24_V 09-2006 - 05-2009
- 3.0 GL 320 CDI V6 24_V 09-2006 - 12-2009
- 3.0 GL 350 CDI V6 24_V 05-2009 - 08-2012
- 4.0 GL 450 CDI V8 32_V 05-2009 - 08-2012
- 3.0 GL 350 CDI V6 24_V BlueTec 12-2009 - 08-2012
- 3.0 GL 350 CDI V6 24_V 10-2010 - 08-2012
R (W251)
- 3.5 350 V6 24_V 4-Matic 08-2005 - 12-2012
- 3.0 320 CDI 24_V 4-Matic 01-2006 - 07-2010
- 6.2 63 AMG V8 32_V 4-Matic 02-2006 - 12-2010
- 5.0 500 V8 32_V 4-Matic 08-2005 - 12-2014
- 3.0 280 CDI 24_V 4-Matic 05-2006 - 12-2012
- 3.0 280 V6 24_V 01-2007 - 12-2014
- 3.5 350 V6 24_V 01-2007 - 12-2012
- 5.5 550 V8 32_V 4-Matic 05-2007 - 12-2014
- 3.0 280 CDI 24_V 05-2006 - 12-2012
- 3.0 300 CDI 24_V BlueEFFICIENCY 4-Matic 07-2009 - 12-2012
- 3.0 350 CDI 24_V 4-Matic 07-2009 - 12-2012
- 3.5 350 CDI V6 24_V BlueTec 4-Matic 01-2006 - 12-2014
- 3.0 300 V6 24_V 07-2009 - 12-2014
- 3.0 350 CDI V6 24_V 4-Matic 08-2010 - 12-2014
- 3.5 350 24_V 4-Matic 10-2011 - 12-2014
- 3.0 280 V6 24_V 4-Matic 05-2007 - 12-2011
- 3.0 320 CDI 24_V 4-Matic 01-2006 - 12-2012
- 3.0 300 CDI 24_V BlueEFFICIENCY 07-2009 - 12-2012
- 3.0 300 V6 24_V 4-Matic 07-2009 - 12-2011
ML III (166)
- 3.5 ML-350 BlueEFFICIENCY 24_V 4-Matic 06-2011 - 12-2015
- 5.5 ML-63 AMG V8 32_V Biturbo 11-2011 - 02-2015
- 4.7 ML-500 BlueDirect 32_V 4-Matic 02-2012 - 02-2015
- 2.1 ML-250 CDI 16_V BlueTEC 4-Matic 06-2011 - 12-2015
- 3.0 ML-350 BlueTEC V6 24_V 4-Matic 06-2011 - 02-2015
- 5.5 ML-63 AMG V8 Performance Package 11-2011 - 02-2015
- 3.0 ML-400 V6 24_V Turbo 4-Matic 08-2013 - 02-2015
- 3.5 ML-350 BlueEFFICIENCY 24_V 09-2011 - 02-2015
GL (X166)
- 3.0 GL 350 CDI V6 24_V BlueTEC 4-Matic 07-2012 - 10-2015
- 4.7 GL 450 V8 32_V 4-Matic 07-2012 - 10-2015
- 4.7 GL 500 BlueEFFICIENCY V8 32_V 4-Matic 07-2014 - 10-2015
- 5.5 GL 63 AMG V8 32_V 4-Matic 07-2012 - 10-2015
- 4.7 GL 550 BlueEFFICIENCY V8 32_V 4-Matic 07-2012 - 10-2015
- 3.0 GL-400 V6 24_V Turbo 4-Matic 08-2013 - 10-2015
GLE Coupe (C292)
- 350d 3.0 V6 24_V BlueTEC 4-Matic 03-2015 - 10-2019
- 400 3.0 V6 24_V biturbo 4-Matic 03-2015 - 10-2019
- 3.0 450 AMG V6 24_V Turbo 4-Matic 03-2015 - 10-2019
- 5.5 63 S AMG V8 biturbo 32_V 4-Matic 03-2015 - 10-2019
- 5.5 63 AMG V8 biturbo 32_V 4-Matic 03-2015 - 10-2019
- 500 4.7 V8 32_V biturbo 4-Matic 10-2015 - 10-2019
- 3.0 43 AMG V6 24_V Turbo 4-Matic 05-2016 - 10-2019
- 3.0 43 AMG V6 24_V Turbo 4-Matic 06-2017 - 10-2019
GLE (W166)
- 500 4.7 V8 32_V 4-Matic 04-2015 - 10-2018
- 400 3.0 V6 24_V 4-Matic 04-2015 - 10-2018
- 500 e 3.0 V6 24_V 4-Matic 04-2015 - 10-2018
- 350d 3.0 V6 24_V BlueTEC 4-Matic 04-2015 - 10-2018
- 300d 2.0 4-Matic 04-2015 - 10-2018
- 250d 2.0 04-2015 - 10-2018
- 5.5 63 AMG V8 32_V 4-Matic 04-2015 - 10-2018
- 5.5 63 S AMG V8 32_V 4-Matic 04-2015 - 10-2018
- 5.5 63 AMG V8 32_V 4-Matic 04-2015 - 05-2017
- 320 3.0 V6 24_V 4-Matic 10-2015 - 10-2018
- 3.0 450 AMG V6 24_V 4-Matic 10-2015 - 10-2018
- 500 4.7 V8 32_V 4-Matic 10-2015 - 10-2018
- 350 3.5 V6 24_V BlueEFFICIENCY 11-2015 - 10-2018
- 350 3.5 V6 24_V BlueEFFICIENCY 4-Matic 11-2015 - 10-2018
- 3.0 43 AMG V6 24_V4-Matic 05-2016 - 10-2018
- 3.0 43 AMG V6 24_V 4-Matic 06-2017 - 10-2018
- 350d 3.0 V6 24_V BlueTEC 4-Matic 04-2015 - 12-2018
GLS (X166)
- 5.5 63 AMG V8 32_V 4-Matic 11-2015 - 04-2019
- 3.0 GLS-400 V6 24_V 4-Matic 11-2015 - 04-2019
- 4.7 GLS-500 V8 32_V 4-Matic 11-2015 - 04-2019
- 3.0 GLS 350d V6 24_V BlueTEC 4-Matic 11-2015 - 04-2019
- 4.0 GLS-500 V8 32_V 4-Matic 03-2016 - 04-2019
- 3.0 GLS-450 V6 24_V 4-Matic 06-2016 - 04-2019
- 3.0 GLS 350d V6 24_V BlueTEC 4-Matic 01-2017 - 04-2019
