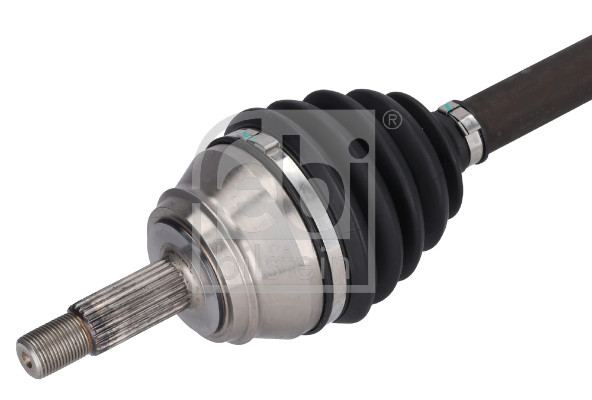

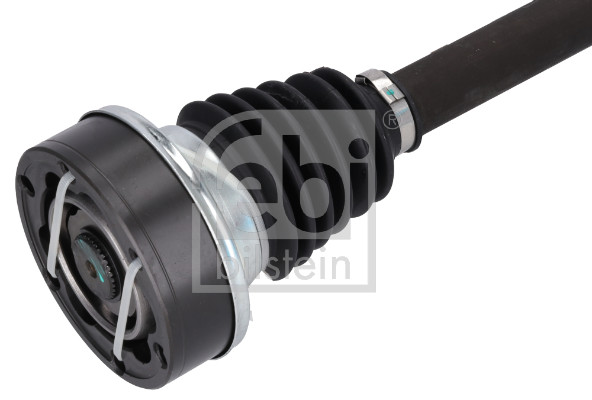

Drive shaft

Product information:

Article number 193602
6 available mounting holes
Bore 8.3mm
Bolt circle diameter 86mm
Outer spline wheel side 22
With nut
front axle - left
Thread M20x1.5mm
Minimum length 513mm
Shaft body diameter drive side 100mm
Shaft body diameter wheel side 90mm

Part numbers:

  • 191 407 271 AC
  • 191 407 271 F
  • 191 407 271 FX
  • 191 407 271 H
  • 191 407 271 HX
  • 191 407 271 K
  • 191 407 271 LX
  • 191 407 271 S
  • 191 407 271 SV
  • 191 407 271 T
  • 191 407 271 TV
  • 191 407 271 TX
  • 191 407 451 X

Manufacturer:

FEBI

Suitable for:

  • Volkswagen

  • Seat
